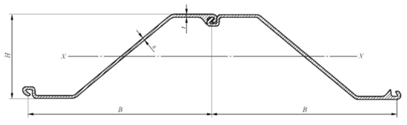

HRSP-Z Warmgewalzte Z-Profile Spundwand

Section

Dimensions

sectional
area

Mass

Moment of inertia

Modulus of Section

Width

Height

Thickness

Per pile

Wall

B

H

t

s

mm

mm

mm

cm2/m

kg/m

kg/m2

cm4/m

cm3/m

HRSP-Z-1100

575

260

8.8

-

128.7

58.1

101.0

14300

1100

HRSP-Z-1250

575

260

10.8

-

150.3

67.9

118.1

16250

1250

HRSP-Z-1600

575

350

9.2

-

136.3

61.5

107.0

28000

1600

HRSP-Z-4595

580

481

18.0

14.0

291.2

132.6

228.6

110450

4595

HRSP-Z-4800

580

482

19.0

15.0

306.5

139.6

240.6

115670

4800

HRSP-Z-5015

580

483

20.0

16.0

322.2

146.7

252.9

121060

5015

HRSP-Z-1800

630

380

9.5

9.5

150.4

74.4

118.1

34200

1800

HRSP-Z-1870

630

381

10.0

10.0

157.2

77.8

123.4

35540

1870

HRSP-Z-2600

630

427

13.0

12.2

197.8

97.8

155.2

55510

2600

HRSP-Z-1205

700

314

8.5

8.5

123.3

67.7

96.7

18880

1205

HRSP-Z-1305

700

315

9.5

9.5

134.7

74.0

105.7

20540

1305

HRSP-Z-1355

700

316

10.0

10.0

140.4

77.2

110.2

21370

1355

HRSP-Z-1405

700

316

10.5

10.5

146.1

80.3

114.7

22190

1405

HRSP-Z-1730

700

420

8.5

8.5

133.0

73.1

104.4

36230

1730

HRSP-Z-1795

700

420

9.1

9.0

139.1

76.5

109.2

37745

1795

HRSP-Z-1800

700

420

9.0

9.0

139.2

76.5

109.3

37800

1800

HRSP-Z-1870

700

420

9.6

9.5

145.4

79.9

114.2

39322

1870

HRSP-Z-1940

700

421

10.1

10.0

151.7

83.4

119.1

40895

1940

HRSP-Z-2015

700

422

10.6

10.5

158.0

86.8

124.0

42470

2015

HRSP-Z-2430

700

459

11.2

11.2

174.1

95.7

136.7

55820

2430

HRSP-Z-2435

700

459

11.3

11.2

174.4

95.8

136.9

55945

2435

HRSP-Z-2600

700

460

12.3

12.2

187.4

103.0

147.1

59840

2600

HRSP-Z-2675

700

461

12.8

12.7

193.6

106.4

152.0

61640

2675

HRSP-Z-2760

700

461

13.2

13.2

200.2

110.0

157.2

63620

2760

HRSP-Z-3590

700

499

15.0

11.2

215.9

118.6

169.5

89610

3590

HRSP-Z-3595

700

499

15.1

11.2

216.1

118.8

169.6

89750

3595

HRSP-Z-4205

700

499

18.0

14.0

258.7

142.1

203.1

104930

4205

HRSP-Z-3795

700

500

16.0

12.2

230.0

126.4

180.6

94840

3795

HRSP-Z-4405

700

500

19.0

15.0

272.8

149.9

214.2

110150

4405

HRSP-Z-3995

700

501

17.0

13.2

244.2

134.2

191.7

100080

3995

Section

Dimensions

sectional
area

Mass

Moment of inertia

Modulus of Section

Width

Height

Thickness

Per pile

Wall

w

h

t

s

mm

mm

mm

cm2/m

kg/m

kg/m2

cm4/m

cm3/m

HRSP-Z-4000

700

501

17.1

13.2

244.4

134.3

191.8

100220

4000

HRSP-Z-4605

700

501

20.0

16.0

287.0

157.7

225.3

115370

4605

HRSP-Z-4755

700

503

22.0

15.0

288.4

158.5

226.4

119650

4755

HRSP-Z-4955

700

504

23.0

16.0

302.6

166.3

237.5

124890

4.955

HRSP-Z-5155

700

505

24.0

17.0

316.8

174.1

248.7

130140

5155

HRSP-Z-2810

750

509

12.0

10.0

171.2

100.8

134.4

71540

2810

HRSP-Z-3005

750

510

13.0

11.0

184.7

108.8

145.0

76670

3005

HRSP-Z-3200

750

511

14.0

12.0

198.3

116.7

155.6

81800

3200

HRSP-Z-1245

770

344

8.5

8.5

120.1

72.6

94.3

21430

1245

HRSP-Z-1250

770

343

8.6

8.5

132.8

72.8

104.0

21495

1250

HRSP-Z-1300

770

344

9.0

9.0

125.8

76.1

98.8

22360

1300

HRSP-Z-1305

770

344

9.1

9.0

139.1

76.2

108.9

22433

1305

HRSP-Z-1355

770

344

9.6

9.5

145.4

79.6

113.8

23370

1355

HRSP-Z-1405

770

345

10.0

10.0

137.2

82.9

107.7

24240

1405

HRSP-Z-1840

800

449

8.5

8.5

128.6

80.7

100.9

41320

1840

HRSP-Z-2000

800

450

9.5

9.5

141.0

88.6

110.7

45050

2000

HRSP-Z-2165

800

451

10.5

10.5

153.5

96.4

120.5

48790

2165

HRSP-Z-2330

800

474

11.5

9.0

150.6

94.6

118.2

55260

2330

HRSP-Z-2500

800

475

12.5

10.0

163.3

102.6

128.2

59410

2500

HRSP-Z-2670

800

476

13.5

11.0

176.0

110.5

138.1

63570

2670
